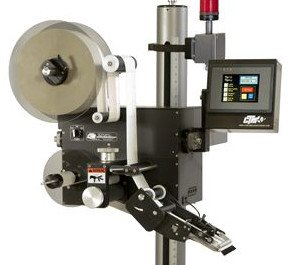

CTM 360a Series Label Applier

CTM 360 Series

Our selection of CTM Labeling Applicators includes the 360 Series and 360a Series models. Each are modular with either the merge, tamp-blow, or airblow nose module integrated. Purchase one style nose module or all three – the base core unit purchase will work with all three.


Depending on product flow – both right hand/left hand can be configured without purchasing additional change parts. These CTM Labeling Applicators will handle a 5 inch, 7-1/2 inch or 10 inch wide labeling web width. Whether you are using 12 inch, 16 inch or 20 inch labeling rolls – we can handle all three.


The CTM 360HS (High Speed) Series Label Applicator is a versatile applicator loaded with standard features that are optional on most other applicators. The 360HS Series Applicator can be configured as a blow on, merge or tamp applicator as well. Each module can also be easily switched from right to left hand dispensing mode. Each applicator is equipped with a 20" non-powered unwind/powered rewind.


For the very high speed and demanding applications – call our Sales Department to learn more about our newly introduced 360a ST Servo Tamp. The 360a ST applicator is a high-speed labeler used to apply pressure sensitive labels to the tops of moving products that have varying heights when randomly presented, and still hold consistent labeling placement from the leading edge of the products. A long stroke (standard lengths of 12 inch, 22 inch and 32 inch) servo motor driven slide operates the tamp-blow application for speed and versatility.

The 360a Series Label Applicator evolved from the industry standard 360 Series Platform. The 360a can be configured as a merge, blow-on or tamp-blow applicator, 5", 7.5" or 10" widths and each module can also be easily switched to the opposite hand with few or no change parts in a minimum amount of time. All units are stepper motor driven to include State-of-the-art electronics and a “Self-teaching” label sensor. File encryption of the 360a allows for easy “on-site” software revisions and upgrades.




Specifications

Series

360a

Voltage

120 VAC
240 VAC Available

Current

5 amps

Frequency

50/60 Hz

Phase

Single

Air Consumption @ 60-90 psi.

Up to 4 CFM

Label Placement

± 1/32 in

Air Blow Width

28 in

Air Blow Height

24 in

Air Blow Depth

27 1/2 in

Merge Width

29 in

Merge Height

25 in

Merge Depth

27 1/2 in

Tamp Width

28 in

Tamp Height

22 1/2 in

Tamp Depth

27 1/2 in

Product Sensing

Retroreflective scanner provided as standard, other types available


Label Sizes

Min. Air Blow (W x L)

3/4 x 3/4 in

Max. Air Blow (W x L)

7.5 x 9 in

Min. Merge (W x L)

3/4 x 3/4 in

Max. Merge (W x L)

10 x 20 in

Min. Tamp (W x L)

3/4 x 3/4 in

Max. Tamp (W x L)

10 x 10 in


Label Roll Size

Max. OD Core

12 in

Max. ID Core

3 in

Optional

16" OD or 20" OD x 3" or 6" ID cores


Stepper Motor
The 360 stepper drive uses a micro pulse driver for increased accuracy and performance, and is programmable to dispense labels at up to 3000 inches per minute.



Control
The 360a features a combined power supply, amplifier and position controller to comprise a single drive package. The new single axis digital stepper / servo controller controls up to five tasks simultaneously plus management of variables with expanded I/O making this drive well-suited for the most demanding production applications. The 360a controller is also equipped with onboard I/O prewired to external connectors to accommodate the following:
    low label - single, double or triple lightstack
    web break - encoder velocity compensation
    loose loop control - product shape profiling
    imprinting - zero downtime configuration
Each machine is shipped preprogrammed and can have the additional hardware installed at a later date for simple “plug n play” operations. The electronic control assembly is packaged as a module and can be easily removed for repair or replacement, eliminating costly downtime and servicing.



Operator Interface
The 6", 256 color, TFT touch screen operator interface provides a bold, bright, high contrast display with self-diagnostic platforms and multi-level intuitive set-up features.



Labeling Speeds
Programmable to 3000 inches per minute with secondary unwind and vacuum takeaway. Programmed with speed profiling ability.





The 360 Series Label Applicator is a rugged, versatile labeler loaded with standard features not found on most other applicators. The 360 can be configured as a merge, blow-on or tamp-blow applicator and each module can also be easily switched to an opposite hand with no change parts in a minimum of time. The 360 is available in 5", 7-1/2" and 10" widths and all units are stepper motor driven and include Dual Microprocessors, State-of-the-art electronics, intelligent control equipped with onboard I/O, and a “Self-teaching” label sensor.



Specifications

Series

360

Voltage

108-132 VAC

Frequency

50/60 Hz

Phase

Single

Current

10 amps

Air Consumption @ 60-90 psi.

Up to 4 CFM

Label Placement

± 1/32 in

Air Blow Width

28 in

Air Blow Height

24 in

Air Blow Depth

27 1/2 in

Merge Width

29 in

Merge Height

25 in

Merge Depth

27 1/2 in

Tamp Width

28 in

Tamp Height

22 1/2 in

Tamp Depth

27 1/2 in


Label Sizes

Min. Air Blow (W x L)

3/4 x 3/4 in

Max. Air Blow (W x L)

7.5 x 9 in

Min. Merge (W x L)

3/4 x 3/4 in

Max. Merge (W x L)

10 x 20 in

Min. Tamp (W x L)

3/4 x 3/4 in

Max. Tamp (W x L)

10 x 10 in


Label Roll Size

Max. OD Core

12 in

Max. ID Core

3 in

Optional

16" OD or 20" OD x 3"or 6" ID cores


Labeling Speeds
Programmable to 1500 inches per minute, to 2100 IPM with oversize unwind and rewind. Programmed with speed profiling ability.



Product Sensing
Retroreflective scanner provided as standard, other types available



Stepper Motor
The 360 stepper drive uses a micro pulse driver for increased accuracy and performance, and is programmable to dispense labels at up to 2100 inches per minute.



Control
The 360 is equipped with state-of-the-art electronics featuring a Dual Microprocessor control - One 32-bit processor supervises the application program while a digital signal processor (DSP) supervises the motion loop resulting in faster response times and improved application accuracy. The 360 controller is also equipped with onboard I/O pre-wired to external connectors to accommodate the following:

low label - tamp home and extend switching
web break - encoder velocity compensation
loose loop control - product shape profiling
imprinting - zero downtime configuration


Each machine is shipped preprogrammed and can have the additional hardware installed at a later date for simple “plug n play” operations. The electronic control assembly is packaged as a module and can be easily removed for repair or replacement, eliminating costly downtime and servicing.



Operator Interface
The self-prompting user-friendly display control comes with an easy to read, 4 line, 40 character LCD display. Dedicated soft keys allow quick access to the most frequently used set up parameters, thus eliminating lost time searching through complicated menus.

360 High Speed

AAA




Specifications

Voltage

108-132 VAC

Frequency

50/60 Hz

Phase

Single

Current

10 amps

Air Consumption @ 60-90 psi.

Up to 4 CFM

Label Placement

+/- 1/32" in

Air Blow Width

39 in

Air Blow Height

38 1/2 in

Air Blow Depth

27 1/2 in

Merge Width

43 in

Merge Height

40 in

Merge Depth

27 1/2 in

Tamp Width

42 in

Tamp Height

37 in

Tamp Depth

27 1/2 in


Label Sizes

Min. Air Blow (W x L)

3/4 x 3/4 in

Max. Air Blow (W x L)

5 x 5-1/2 in

Min. Merge (W x L)

3/4 x 3/4 in

Max. Merge (W x L)

5 x 20 in

Min. Tamp (W x L)

3/4 x 3/4 in

Max. Tamp (W x L)

5 x 10 in


Label Roll Size

Max. OD Core

20 in

Max. ID Core

3 in

Optional

16" OD x 3"or 6" ID cores


Features
The CTM 360HS Series Label Applicator is a rugged, versatile applicator loaded with standard features that are optional on most other applicators. The 360HS Series Applicator can be configured as a blow on, merge or tamp applicator. Each module can also be easily switched from right to left hand dispensing mode. Each applicator is equipped with a 20" non-powered unwind/powered rewind.



Stepper Motor
The 360HS stepper drive will dispense labels at speeds ol 2100 inches/minute.



Control
The 360HS is equipped with state-of-the-art electronics featuring Dual Microprocessor control. One 32-bit processor supervises the application program while the digital signal processor (USP) supervises the motion loop resulting in taster response times and improved application accuracy. The 360HS controller is also equipped with onboard I/O prewired to external connectors to accommodate the following:
  • Low Label Conditions
  • Web Break and End of Web Conditions
  • Tamp Extend & lamp Home Switching
  • Rate & Velocity Compensation
  • Profiling
  • Zero Downtime Configuration of Applicators
Each machine is shipped preprogrammed with prewired connectors to control all of the above accessories. Some additional hardware may be required.
The electronic control assembly has been packaged as a module. Each control module can be easily removed for repair or replacement, eliminating costly downtime and servicing costs.



Labeling Speeds
Programmable to 1500 inches per minute, to 2100 inches per minute, with oversize unwind and rewind. Programmed with speed profiling ability.



Product Sensing
Retroreflective scanner provided as standard, other types available.

Features:

Configuration Air Blow
Label Width (Max.) 5"
Label Length (Max.) 5.5"
Label Placement +/- 1/32"
Product Sensor- others available Retroreflective
Operator Interface - LCD Display 4 line 40 char LCD
Label Inner Core (Dia.) optional 6" 3"
Label Rolls (Dia.) optional 16" - 20" 12"
Labeling Speed - optional 2100 ipm 1500 ipm
Machine Dimensions (W x L x D) 28" x 24" x 27.5"
Electrical 50/60 Hertz 108-132 VAC
Air Consumption 4 CMF @ 60-90 psi.
