CTM 3600a-PA Print and Apply Series

3600a-PA Series



Our selection of CTM PA’s - Printer Applicators, includes the 3600 Series and 1800 models.


Within the product offering of the 3600 Series, we offer the Straight Tamp printer applicator, Dual Action Tamp printer applicator, Cornerwrap printer applicator, Swing Tamp printer applicator, Integrated Loose Loop printer applicator, RFID RW printer applicator and Servo Tamp printer applicator. Any of these can be configured in both right hand and left hand application.


Assembled with a right or left hand Sato, Zebra or Datamax print modules of 203 dpi, 305 dpi, 400 dpi or 600 dpi, these units can be mounted in various positions to apply pressure sensitive labels to the tops, sides or bottoms of a multitude of products.


The 1800 PA – Printer Applicator is also a thermal transfer labeler for the entry level, low cost, “not so demanding” labeling applications – used to print and apply pressure sensitive labels to various products. A Sato LT 408 printer module is integrated into the 1800 applicator core unit to form a self-contained printer applicator to print variable data to the label then apply.

3600a PA Printer Applicator

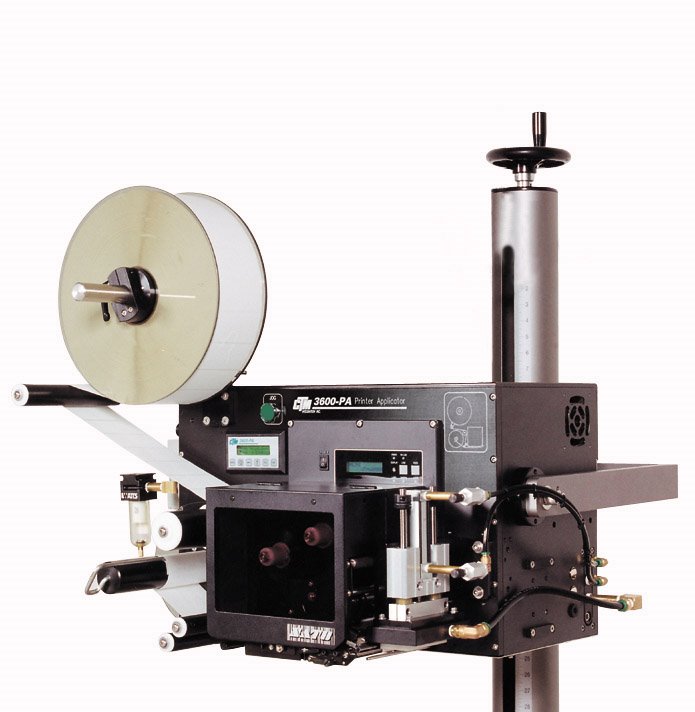

The 3600a PA Printer Applicator is a rugged and versatile, high speed, thermal transfer labeler used to print and apply pressure sensitive labels to various products. Available in CE versions.

Features
The 3600a PA Printer Applicator is a rugged and versatile, high speed, thermal transfer labeler used to print and apply pressure sensitive labels to various products. A Sato, Zebra or Datamax print engine is integrated into an applicator to form a self-contained unit to print variable data.

Assembled with right or left hand printer modules, the unit can be mounted in various positions to apply labels to the tops, sides or bottoms of a multitude of products with its proven tamp-blow application.

Labels as small as ½" and as large as 7.1" wide can be accommodated with its built-in barcodes and alpha-numeric fonts and 203, 305, 406 or 600 dpi print resolution.

The 3600a plc control includes a remote 4.3" color touchscreen operator interface display, user friendly and easy to read with an intuitive menu structure for operating parameters, and I/O diagnostics for use in labeler setup and troubleshooting of interface connectivity. An enhanced set up and testing capability provides for feeding of blank labels. Multi-layers of password protection offer security at operator and technical access levels.

Remote mounting allows convenient locating regardless of labeler position or attitude.

The operating program includes an encoder based Velocity Compensation feature for improved label placement accuracy at varying process line speeds.
Various onboard I/O signals are pre-wired to an external connector; additional built-in ports allow optional features to be added in the field with minimum investment.

NOTE: Label sizes dependent upon print engine model, also contact CTM Integration for custom sizes or shapes.

Print resolutions are 203, 305, 406 and 600 dpi, with print speeds programmable up to 16"/sec. (dpi dependent).

Print capabilities include fonts of various sizes and styles with independent height and width expansion; barcodes include OCR A/B, EAN 8/13, Code 39, Code93, UPC A/E (with extensions), Code 128, I 2 of 5, Maxicode,

Distributed By:
3600aPA/0616DataMatrix, PDF417, MicroPDF, CODABAR, MSI, POSTNET and others.

The Graphics feature supports user defined fonts and graphics including custom logos.

Labeling Speed is dependent upon label size, print speed and application type.

Standard Machine
Features include Heavy Duty Construction, Tamp Blow Applicator, External Valves and Controls, Remote Operator Color Touchscreen Display, 12" O.D. Label Roll, I/O Connection and Communication Port Connections.
Optional features include Low Label/Low Ribbon, Out of Label/Out of Ribbon, End of Web, Red, Amber and Green “Ready” Stack Lights and 16" Unwind and High Capacity Rewind for large label rolls.

Dimensions
31.5" L x 27.5" W x 23.5" H

Weight
Approx. 150 lbs.

Electrical
108-132 Volts AC, 5 Amps, 50/60 Hertz, Single Phase
Pneumatic
90 psi., 3-5 cfm

Communications
RS 232, Parallel, Ethernet, USB or Wireless
Environmental
Operating: 41O F to 104O F Storage: -4O F to 104O F
(5O C to 40O C) (-20O C to 40O C)

Printing Methods
Thermal Transfer & Direct Thermal

3600ST Servo Tamp Printer Applicator

Features:





The 3600 Servo Tamp (ST) Printer Applicator is a rugged and versatile high speed, thermal transfer labeler used to print and apply pressure sensitive labels to various products. A Sato, Zebra or Datamax print engine is integrated into an applicator to form a self-contained unit to print variable data.

Assembled with right or left hand Sato, Zebra or Datamax printer modules, the unit can be mounted in various positions to apply labels to the tops, sides or bottoms of a multitude of products.

Small and large labels up to 7.1" wide can be accommodated with its built-in bar codes and alpha-numeric fonts and 203, 305 or 600 dpi print resolution.

The plc control with user-friendly display interface offers quick access to set-up selection for application operating parameters. This feature can also be accessed by remote input.

Various on board I/O signals are pre-wired to an external connector; optional features may be added in the field with minimum investment.

Label Size Range for Sato is 1.0" wide x ¼" long minimum to 6.5" wide x 10" long maximum, for Zebra is 5/8" wide x ½" long minimum to 7.1" wide x 10" long maximum, for Datamax is 1" wide x .25 long minimum to 6.64" wide by 10" long maximum.

NOTE: Sizes dependent upon print engine model. Contact CTM Labeling Systems for custom sizes and shapes.

Print Resolution and Speed are 203 dpi, 305 dpi, 600 dpi with print speeds programmable up to 16"/sec, dpi dependent.

Print capabilities include fonts of various sizes and styles with independent height and width expansion; includes OCR A/B.

Bar Codes include EAN 8/13, Code 39, Code 93,UPC A/E (with extensions), Code 128, I 2 of 5, Maxicode, Data Matrix, PDF 417,Micro PDF, CODABAR, MSI, and POSTNET.

The Graphics feature supports user defined fonts and graphics including custom logos.

Labeling speed is dependent upon label size, print speed and application type.

Standard machine features heavy duty construction for both Tamp Blow and All Electric Tamp, external valves (Tamp Blow unit only - All Electric Tamp does not require valve bank), operator keypad & display, 12" O.D. label roll, i/o connection and communication port connections.


Optional Features

Low label/low ribbon

Out of label/out of ribbon

Red, amber, green “ready" light stack

16" unwind for large label rolls

Dimensions:

33" L x 27.25" W x 43.5" H

Weight:

Approx. 195 lbs.

Electrical:

108-132 Volts AC, 7 Amps, 50/60 Hertz, Single Phase

Pneumatic:

90-100 psi., 4 CFM

41O -104O F (5to 40O C) Storage: -4O to 104F (-20O to 40O C)

Printing Methods:

Thermal Transfer & Direct Thermal

1800PA Printer Applicator

The 1800PA Printer Applicator is a thermal transfer labeler for entry level, low cost applications used to print and apply pressure sensitive labels to various products. A Sato Lt408 print engine is integrated into an applicator to form a self-contained unit to print variable data.Assembled with right or left hand configurations, the unit can be mounted in various positions to apply labels to the tops, sides or bottoms of a multitude of products with its proven tamp-blow application.Small and large labels up to 4.5" wide can be accommodated with its 203 dpi print resolution, built-in bar codes including 2-D and and alpha-numeric fonts. Print speeds are programmable from 2" to 6" per second.Label Size Range for the Sato is 1.12" wide x 0.6" long minimum to 4.5" wide x 10" long maximum.The 1800PA plc control with user-friendly display interface offers quick access to set-up selection for application operating parameters. This feature can also be accessed by remote input.Various onboard I/O signals are pre-wired to an external connector; optional features may be added in the field with minimum investment.Print capabilities include fonts of various sizes and styles with independent height and width expansion; includes OCR A/B.Linear Bar Codes include EAN 8/13, Code 39, Code 93, UPC A/E (with extensions), Code 128, 2 of 5, Matrix 2 of 5, CODABAR, POSTNET, MSI and Bookland.2-D Codes include DataMatrix, PDF417, Maxicode, QR Code, VeriCode and Composite Technology.The Graphics feature supports user defined fonts and graphics including custom logos.Labeling Speed is dependent upon label size, print speed and application type.Standard Machine Features include Heavy Duty Construction, Tamp Blow Applicator, External Valves and Controls, Operator Keypad & Display for Sato and application control, 12" O.D. Label Roll, I/O and Communication Port Connections.Optional Features include Low Label/Low Ribbon, Out of Label/Out of Ribbon, End of Web, Red, Amber and Green “Ready” Stack Lights.



Specifications

Label Roll O.D

12 in

Length

31.5 in

Width

27.5 in

Height

23.5 in

Approx. Weight

110 lbs

Voltage

108-132 VAC

Current

5 amps

Frequency

50/60 Hz

Phase

Single

Pneumatic

90 psi
3-5 cfm

Printing Methods

Thermal Transfer & Direct Thermal

Communications

High Speed RS 232, IEEE 1284 Parallel Options available: Enhanced Ethernet, Wireless 802.11b


Label Sizes

Min. Sato (W x L)

1.12 x 0.6 in

Max. Sato (W x L)

4.5 x 10 in


Environmental

Environmental (Operating)

(5ºC to 40ºC)
41ºF to 104ºF

Environmental (Storage)

(-20ºC to 40ºC)
-4ºF to 104ºF

Features:

Label Width (Max.) 6.5"
Label Length 10"
Reel Inner Core (Dia.) 3"
Reel Outer (Dia.) 12" - 16" optional
Labeling Speed (dpi dependent) up to 12"/sec.
Machine Dimensions (L x W x H) 3.1" x 27.5" x 23.5"
Electric 108-132 Volts AC, 50/60 Hertz
Pneumatic 90 psi. , 3-5 cfm
